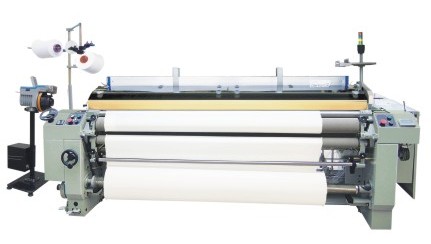

JW851 model is based on JW813 model and to configure dual jet free weft storage models, which is applied to fabric textile production, such as high twist yarn, ammonia-coated wire, the product have good performance to weaving high density fabrics, high speed, stability. This type can match dual jet, cam opening device, dobby opening device.



Optional breadth:135, 190, 210. 230. 260. 280. 340. 360CM Weft insertion rate: most 2280 meter per minute

Speed: design highest rev 1200RPM (The actual speed determined in accordance with fabric specifications) Number of heddle frame: 2,4,6,8 pieces; most cam opening 10 pieces; most

dobby 16 pieces.

Installed power: 1.5-3.5KW
